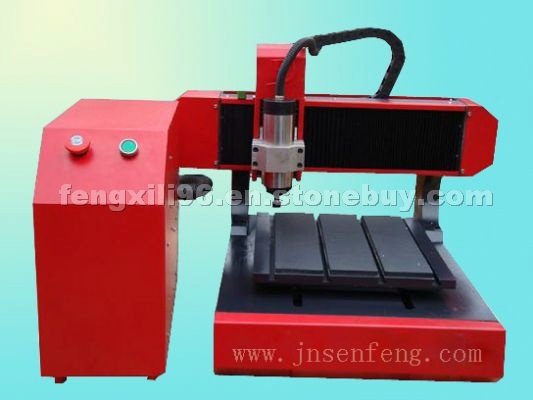

CNC Router SF3030

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1420856

• Place of Origin:

  China
• Specifications: br Table size:300mm*300mm br Resolution ration:0.025mm br Spindle power:1.5KW-4.5 KW br Working voltage: AC380V or 200V /50Hz or 60HZ br Working precision:About 0.04mm br Location precision:About 0.05mm br Table structureVacuum adoption br X,Y,Z structureBall screw br The speed of open working::60m/min br Spindle rotating speed:24000 revolution/min br Max speed of working:25000mm/min br Feeding height100- 200mm(option) br The diameter of the knifeΦ6,Φ12.7 br The engraving instructionHPGL、G code br Knife pressure0.7Kpa br Cleaning power2.2KW br Absorption power5KW br Gross power20KW br Power consumption:2.8KV br Work mode:stepper br Applicable areas: br Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of brass, copper and many jade articles.
