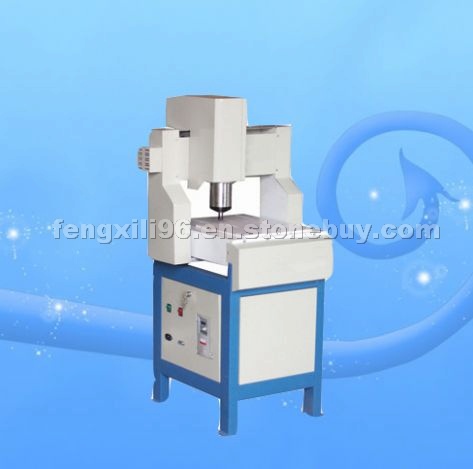

CNC Router SF3030

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1420186

• Place of Origin:

  China
• Specifications:
  Table size:300mm*300mm
  Resolution ration:0.025mm
  Spindle power:1.5KW-4.5 KW
  Working voltage: AC380V or 200V /50Hz or 60HZ
  Working precision:About 0.04mm
  Location precision:About 0.05mm
  Table structureVacuum adoption
  X,Y,Z structureBall screw
  The speed of open working::60m/min
  Spindle rotating speed:24000 revolution/min
  Max speed of working:25000mm/min
  Feeding height100- 200mm(option)
  The diameter of the knifeΦ6,Φ12.7
  The engraving instructionHPGL、G code
  Knife pressure0.7Kpa
  Cleaning power2.2KW
  Absorption power5KW
  Gross power20KW
  Power consumption:2.8KV
  Work mode:stepper
  Applicable areas:
  Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of brass, copper and many jade articles.
